Modernum DL1200 (Canbus)

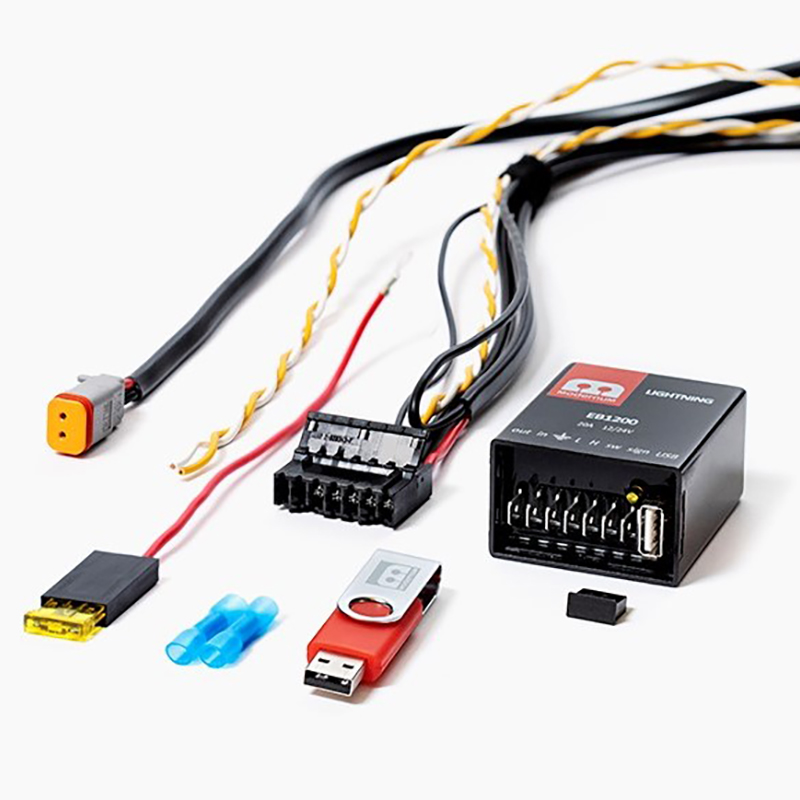

Complete kit for reading out the Canbus auxiliary light signal via the vehicle's engine compartment (light wiring). The kit also consists of a relay for controlling equipment.

The software is easily downloaded from the Modernum website and transferred to the product using the included USB stick. Just like previous digital kits, the Digital Lightning 1200 contains a digital control unit with a secured wiring harness. The kit also includes a DT connector for easy connection to LED ramps or other additional lights.

WHY DIGITAL LIGHTNING 1200?

• Easy to customize, you simply download the right software for the product.
• Affordable.
• Easy to install, all work is done in the engine compartment.
• Complete wiring, everything is included in the kit.
• Generates no error codes.
• High quality, all cables are vehicle-specific.

GET SOFTWARE TO DL1200

The included USB flash drive is used to load the Digital Lightning 1200 with the correct information for your car and your auxiliary lights. Our file library is sorted by make, model, year and light package, making it easy for you to download the correct software.

https://modernum.se/produkter/extraljuskablage/digital-lightning/hamta-mjukvara-dl1200/

Installation

The control signal is normally taken through a lamp in the engine compartment.

Example installation video.

Specification

Voltage: 12v
Max load:  13A, 156W @ 12v, with DT-connector. 20A, 240W @ 12V, without DT-connector.
