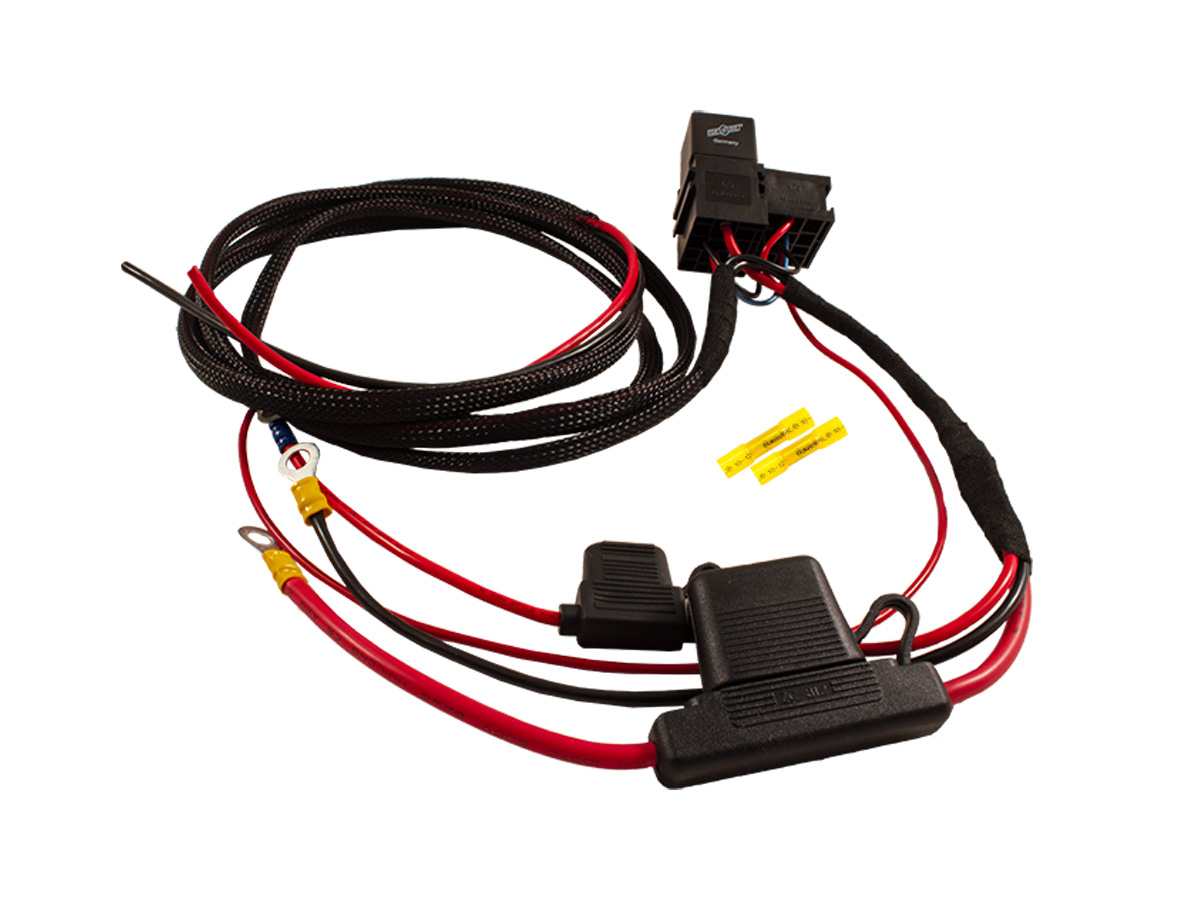

XBB Wiring kit + extra 70A relay
851 SEK
Kit for simpler mounting of XBB Power Unit.
Double sockle with extra 70A relay.
Double sockle with extra 70A relay.
- Secure payment by card
- Call us if you have any questions on: +46651-760460
- Fast delivery with DHL
- BrandAwimex
Description
Article no.: 97262
Complementary kit for connecting the XBB Power Unit (relay).

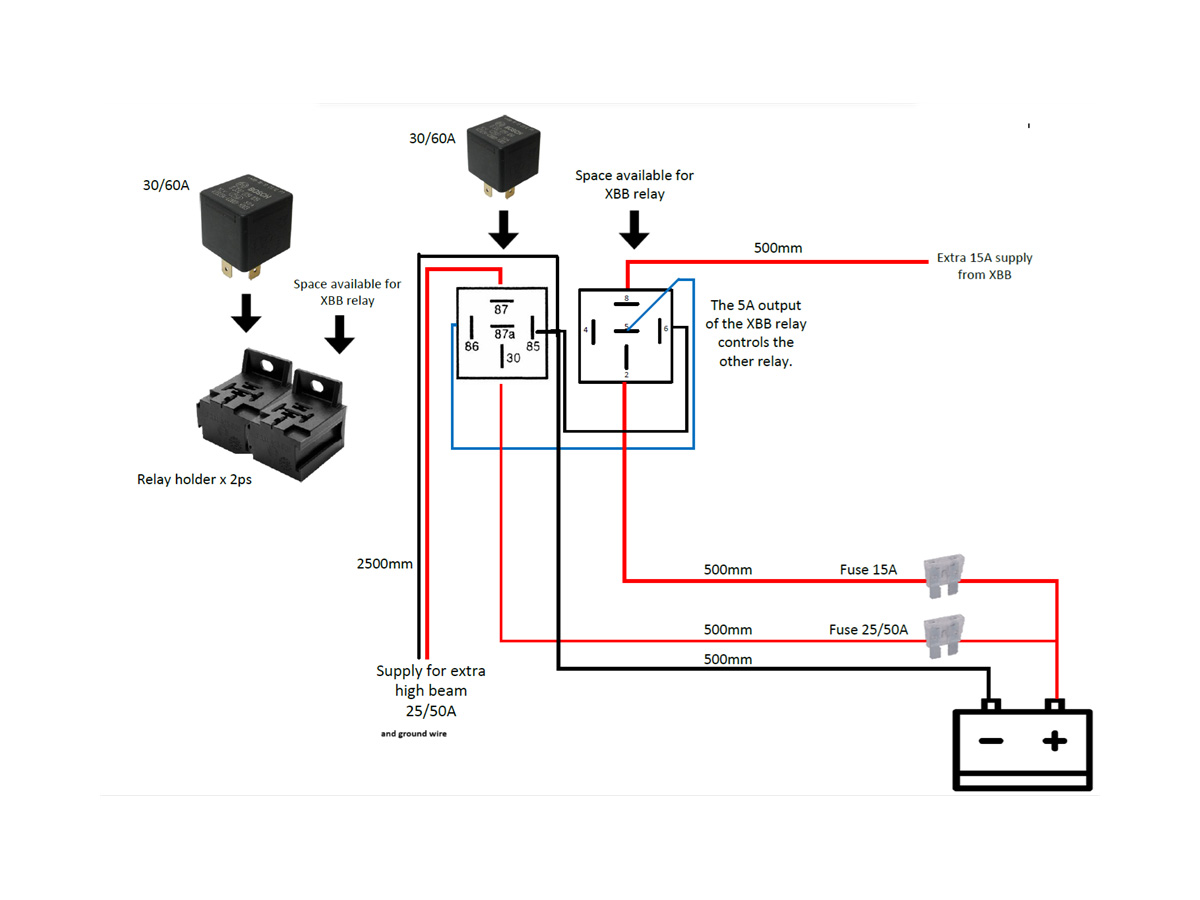

Auxiliary light wiring with double relay holders, one for the XBB and one with a 70A relay.
The 5A output on the XBB controls the 70A relay.
The 15A output on the XBB can be used for optional/extra functions (e.g. DRL).
6mm² cable and 50A MAXI fuse for LED ramp/auxiliary light.
NOTE! XBB sold separately.
Specification
- 2x relay socket
- Relay 70A - Fuse 50A
- 6mm² wire
