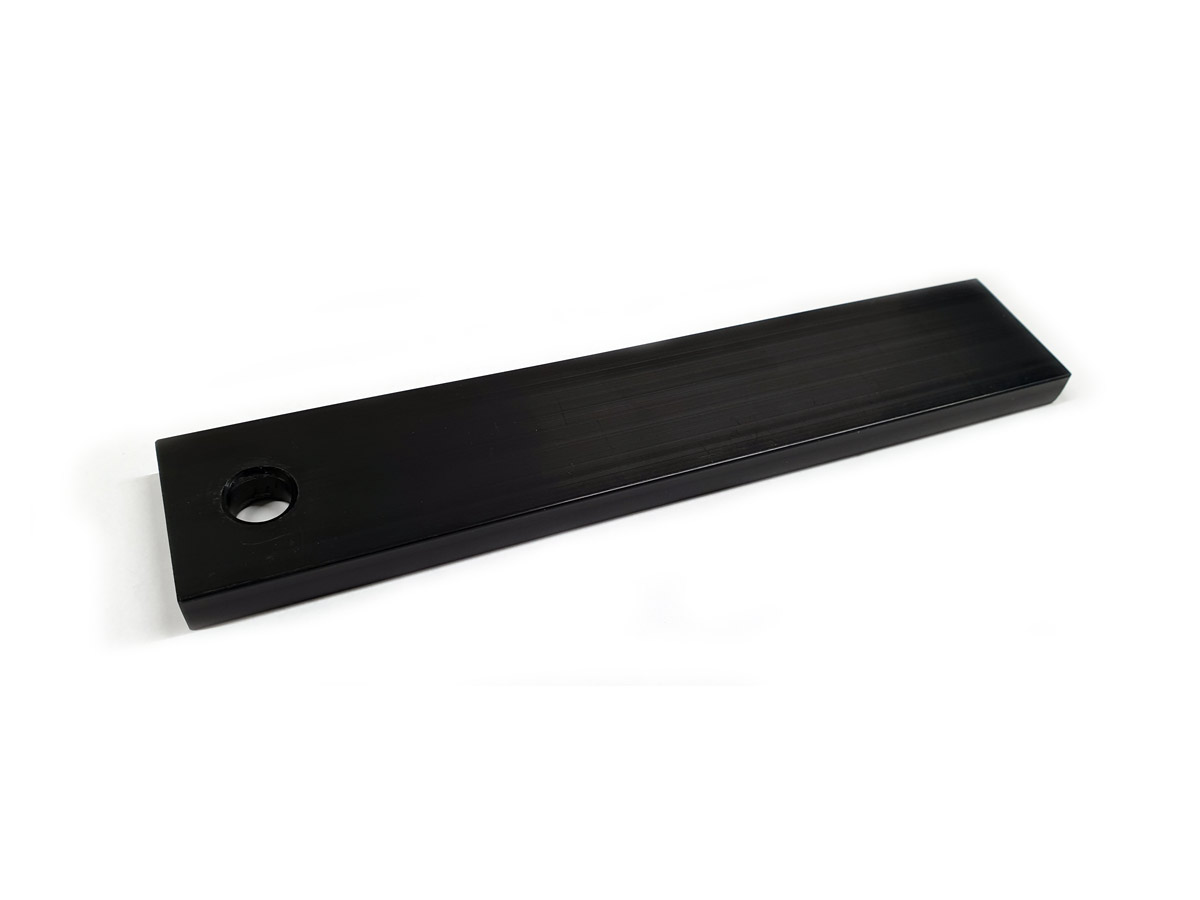

Q-GRIP Slide rod
110 SEK
Detail to the Q-GRIP systemet.
The Slide rod is the detail that gives the system guiding in height.

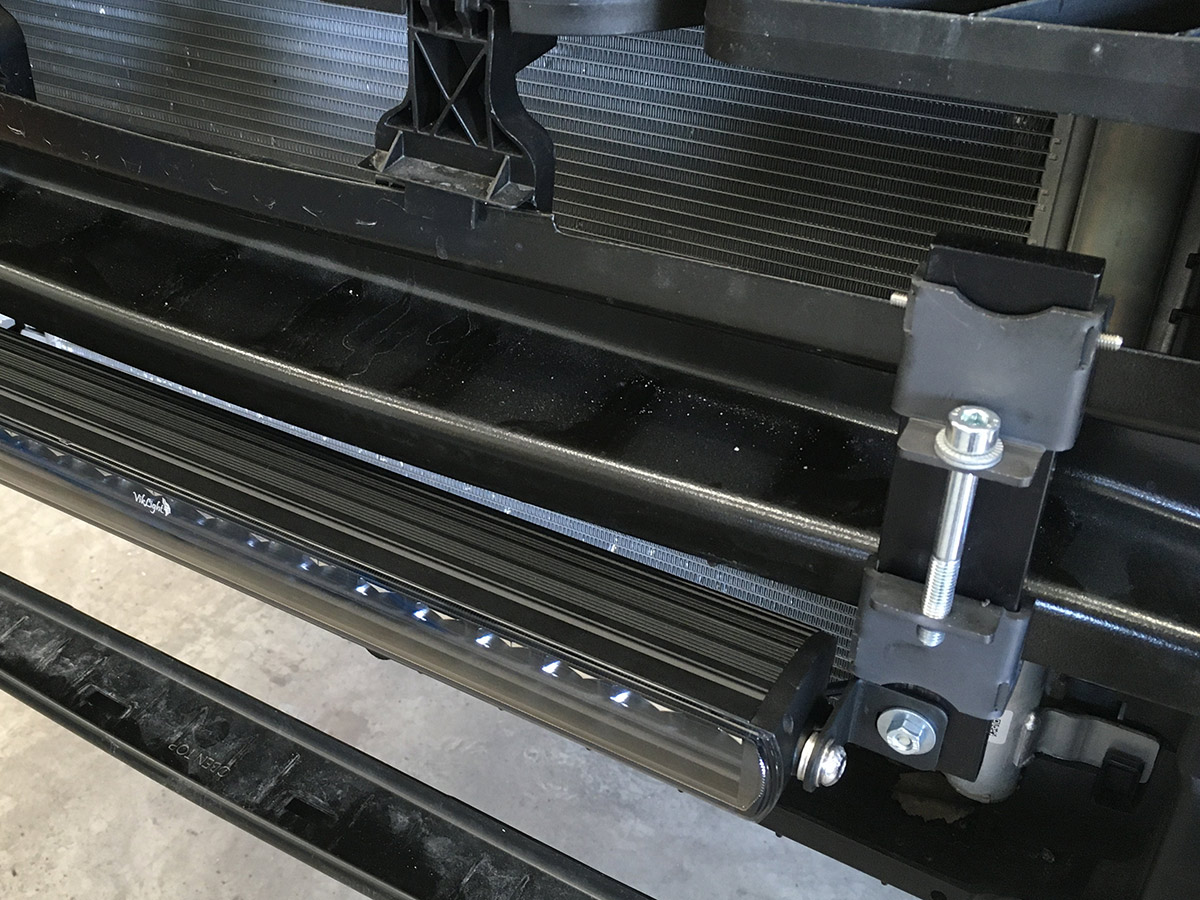

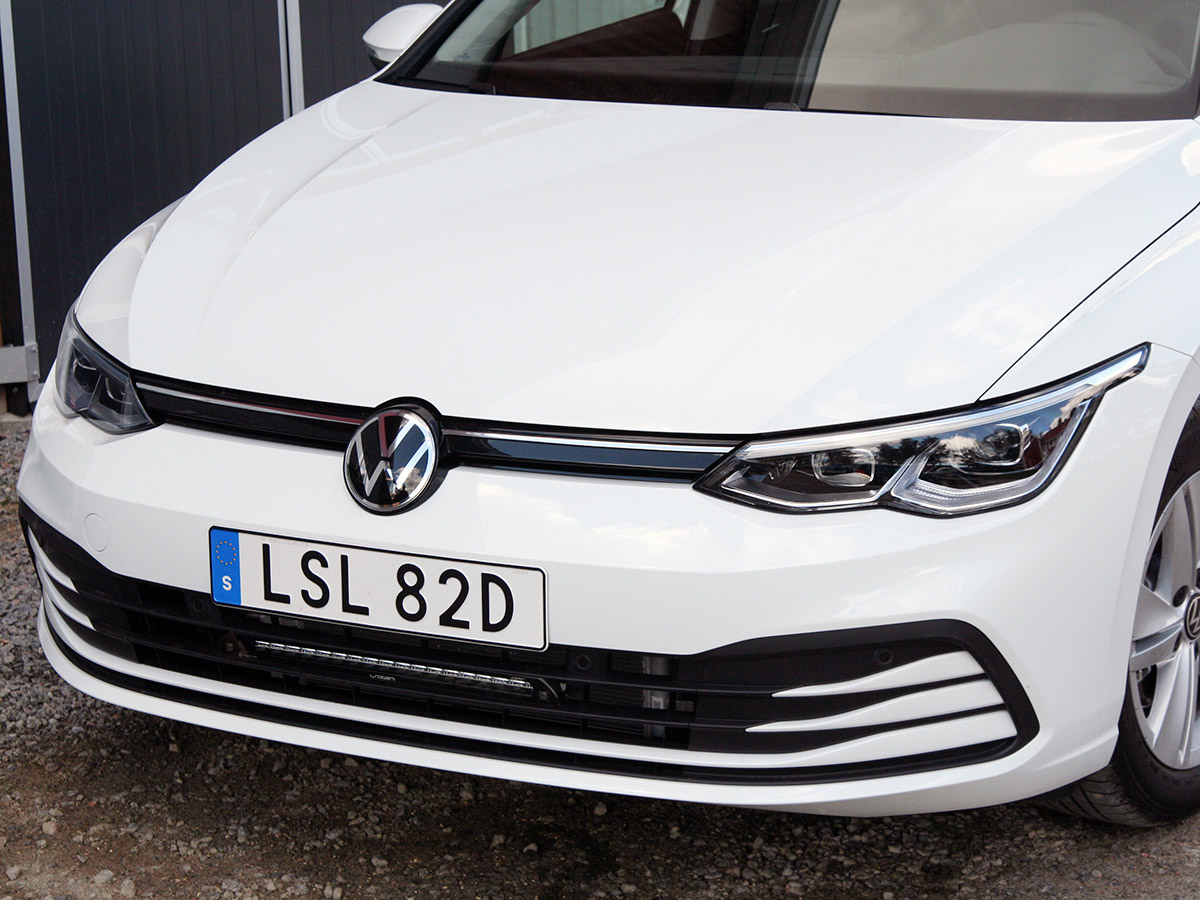

Q-GRIP bumper beam mount - a bracket for e.g. recessed mount of an LED light bar.
The Slide rod is the detail that gives the system guiding in height.
Q-GRIP bumper beam mount - a bracket for e.g. recessed mount of an LED light bar.
- Secure payment by card
- Call us if you have any questions on: +46651-760460
- Fast delivery with DHL
Description
Article no.: QG10020
Q-GRIP Slide rod
Detail to the Q-GRIP systemet.The Slide rod is the detail that gives the system guiding in height.

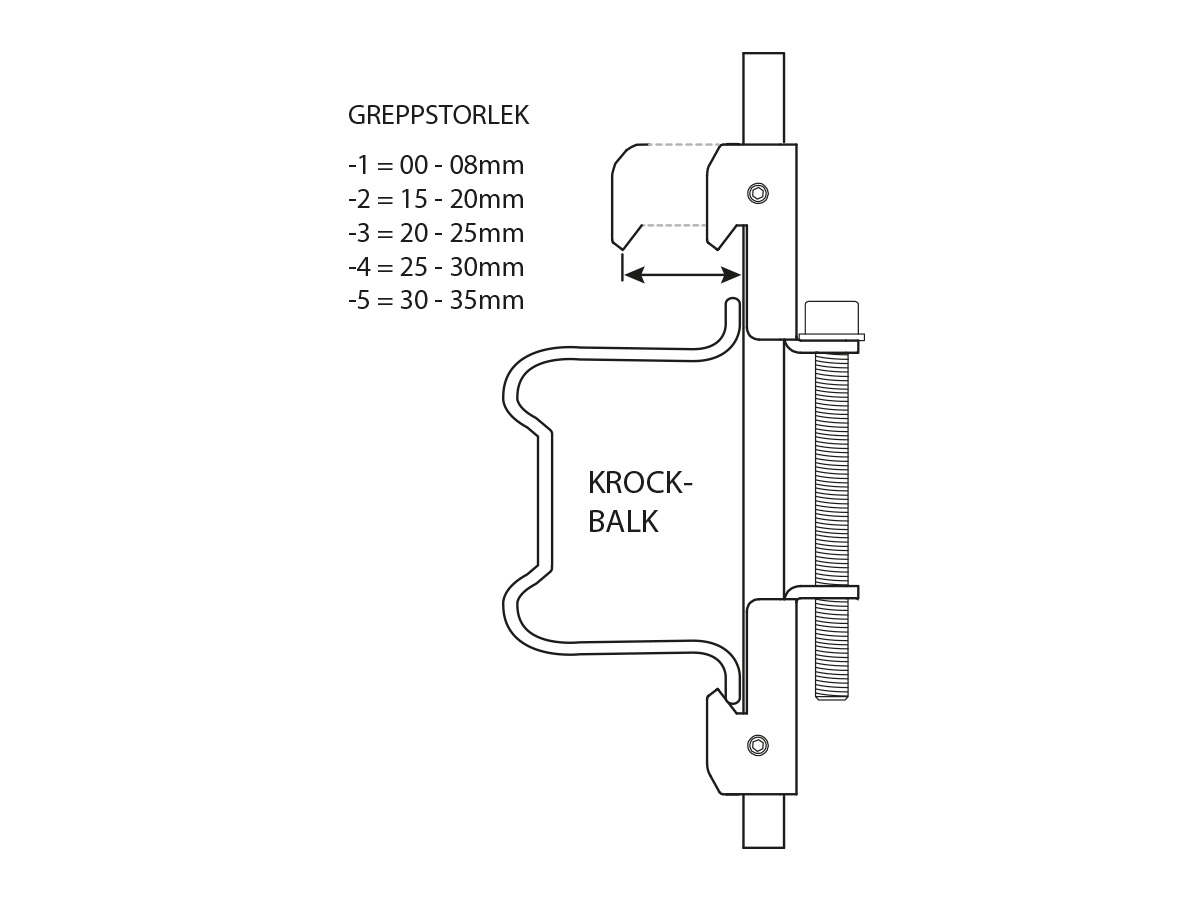

Desired length to clamp around the bumber beam and the distance to move the attachment pionts to desired length from beam is choosen at order.
Read more about the Q-GRIP system in the mounting instruction (PDF).
Specification
- Dimension: 40x10mm
- Length: 145mm, 160mm, 180mm, 210mm, 225mm, 240mm, 275mm, 300mm
- Material: Alu
- Color: Black anodized
- Ø12mm hole in one end
Mounting instruction in PDF below
