Q-GRIP Screw M8 M6S
10 SEK
Detail to the Q-GRIP systemet.
Screw with hexacon head.

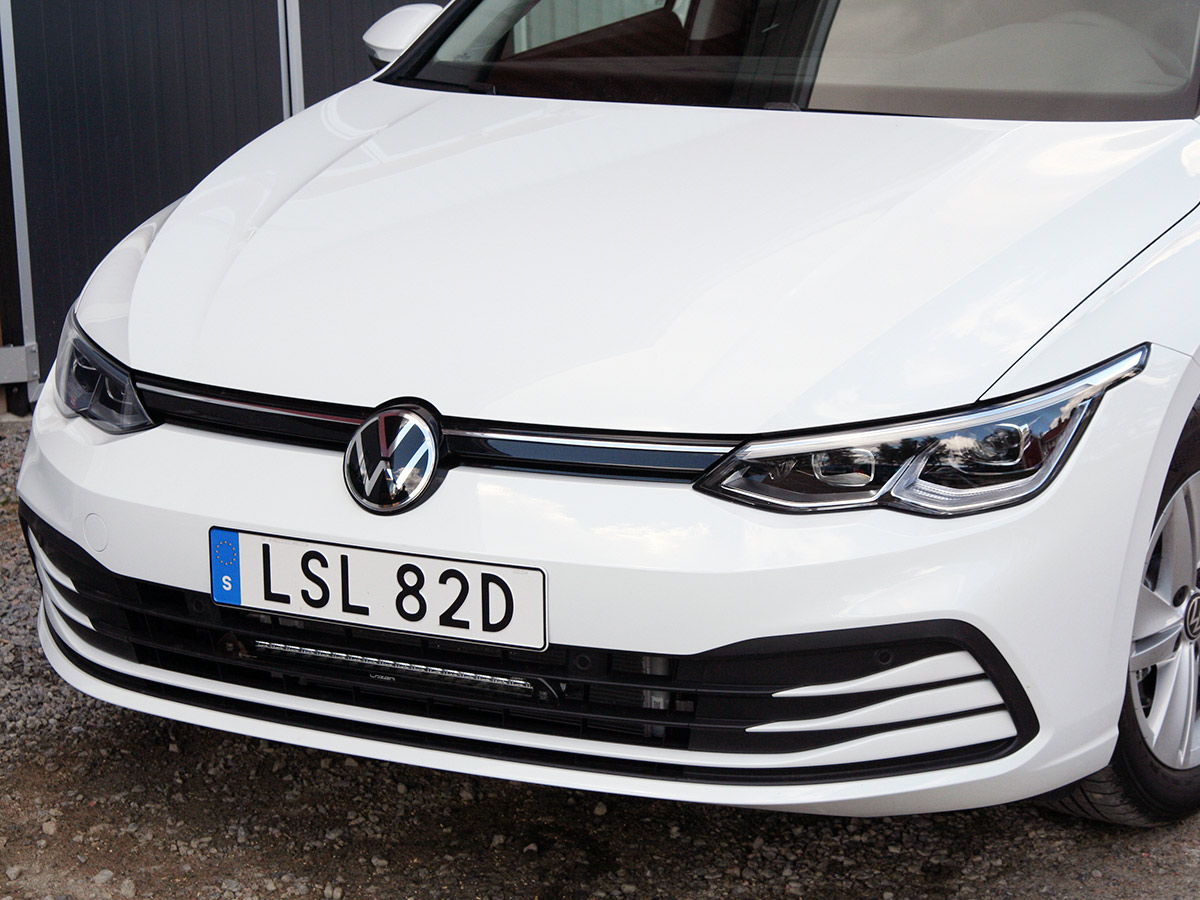

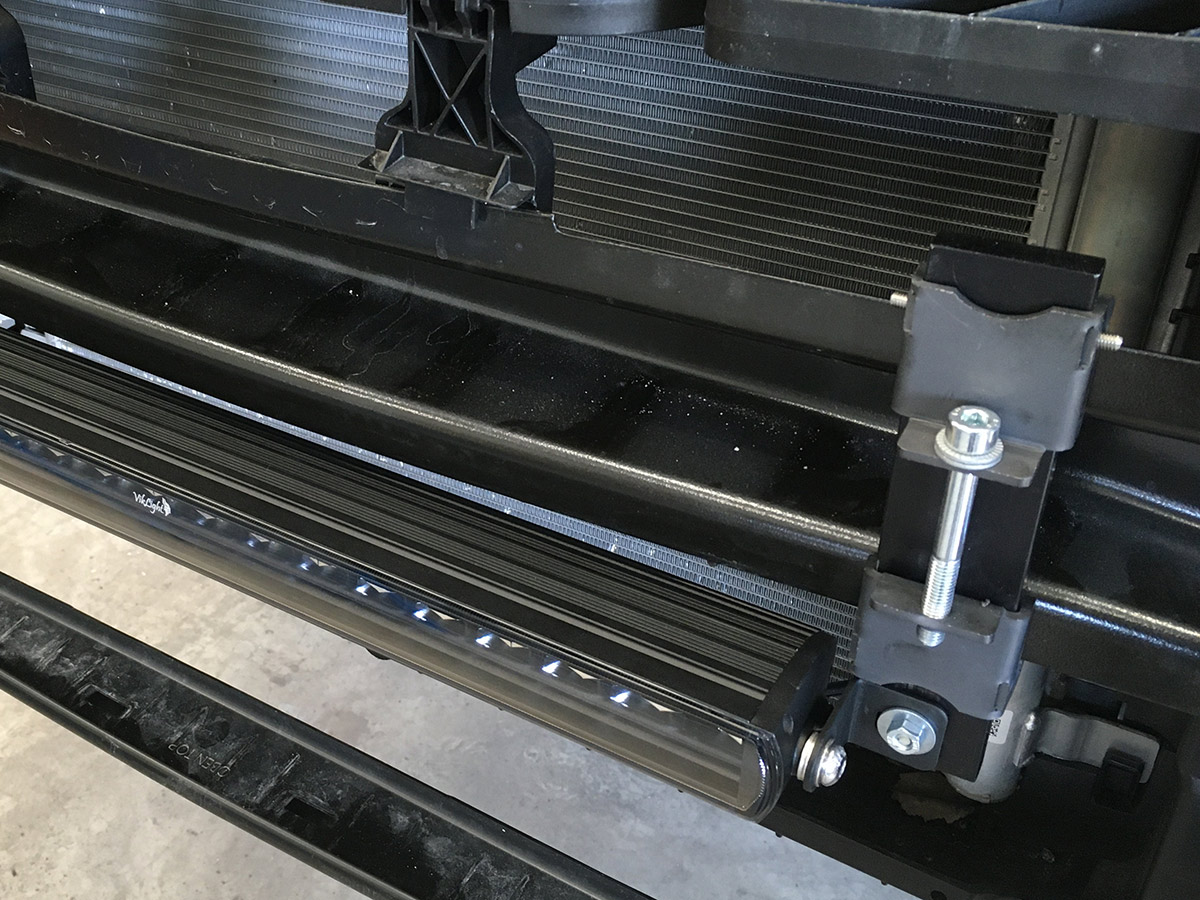

Q-GRIP bumper beam mount - a bracket for e.g. recessed mount of an LED light bar.
Screw with hexacon head.
Q-GRIP bumper beam mount - a bracket for e.g. recessed mount of an LED light bar.
- Secure payment by card
- Call us if you have any questions on: +46651-760460
- Fast delivery with DHL
Description
Article no.: QG10040
Q-GRIP Screw M8 M6S

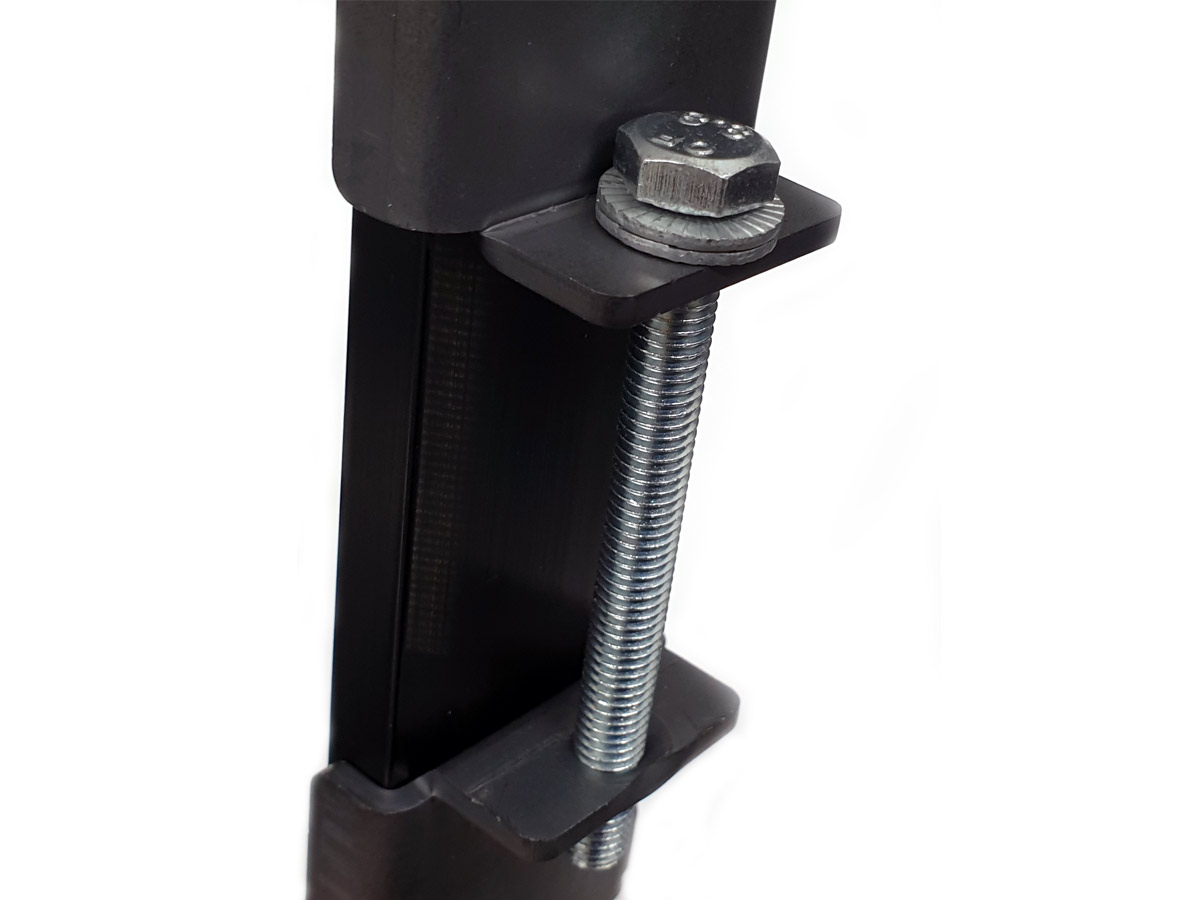

Detail to the Q-GRIP systemet.M8 screw to clamp the claws against the bumber beams. Desired length are choosen at order.
Read more about the Q-GRIP system in the mounting instruction (PDF).
60mm = For beams that is 90-110mm high
80mm = For beams that is 110-130mm high
100mm = For beams that is 130-150mm high
120mm = For beams that is 150-170mm high
Specification
- Q-GRIP Screw M6S: M8x60mm, M8x80mm, M8x100mm, M8x120mm, M8x150, M8x180, M8x200
- Material: Steel
- Coating: fzb
- Full threaded
- Incl M8 Nordlock washer
Mounting instructions in PDF below
