Q-GRIP Claw
150 SEK
Detail to the Q-GRIP systemet.
The Claw is the detail that grips around the bumber beam.

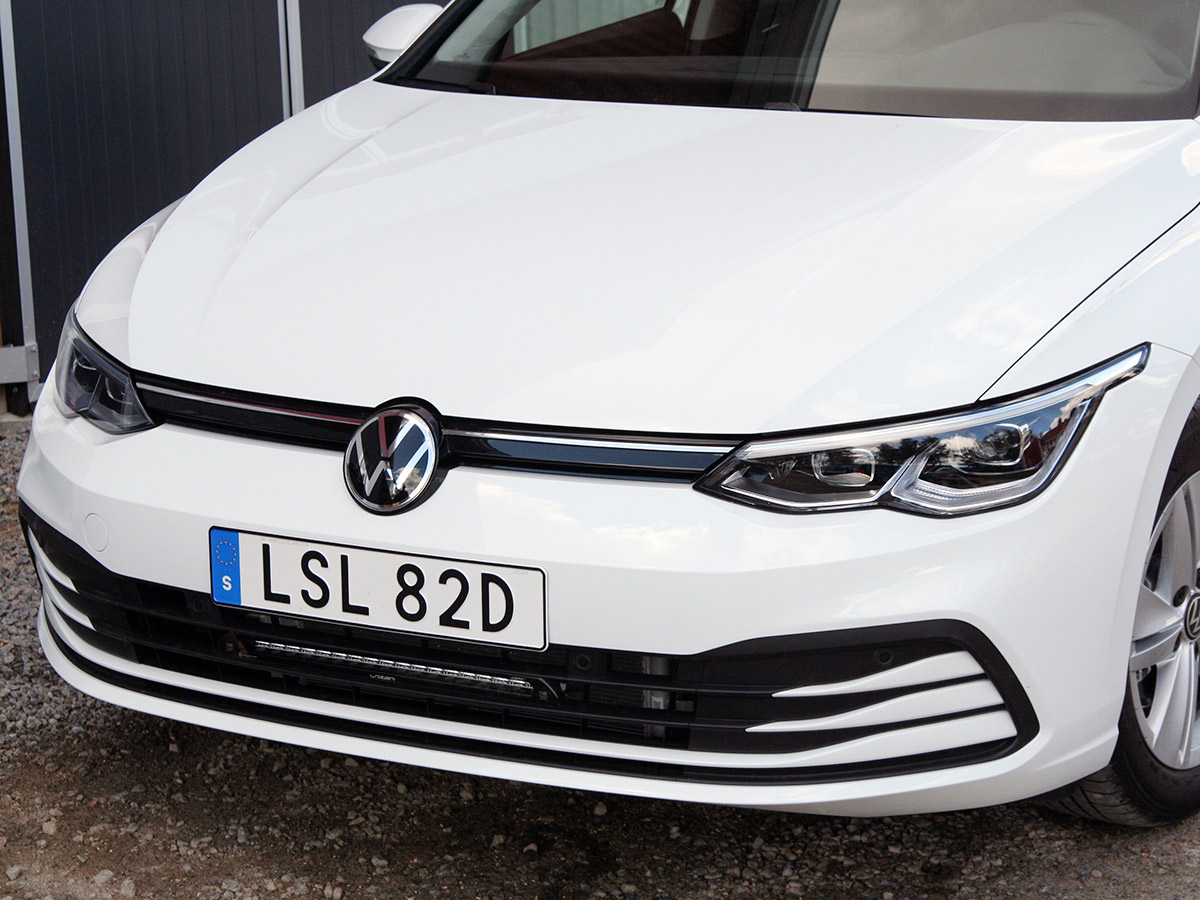

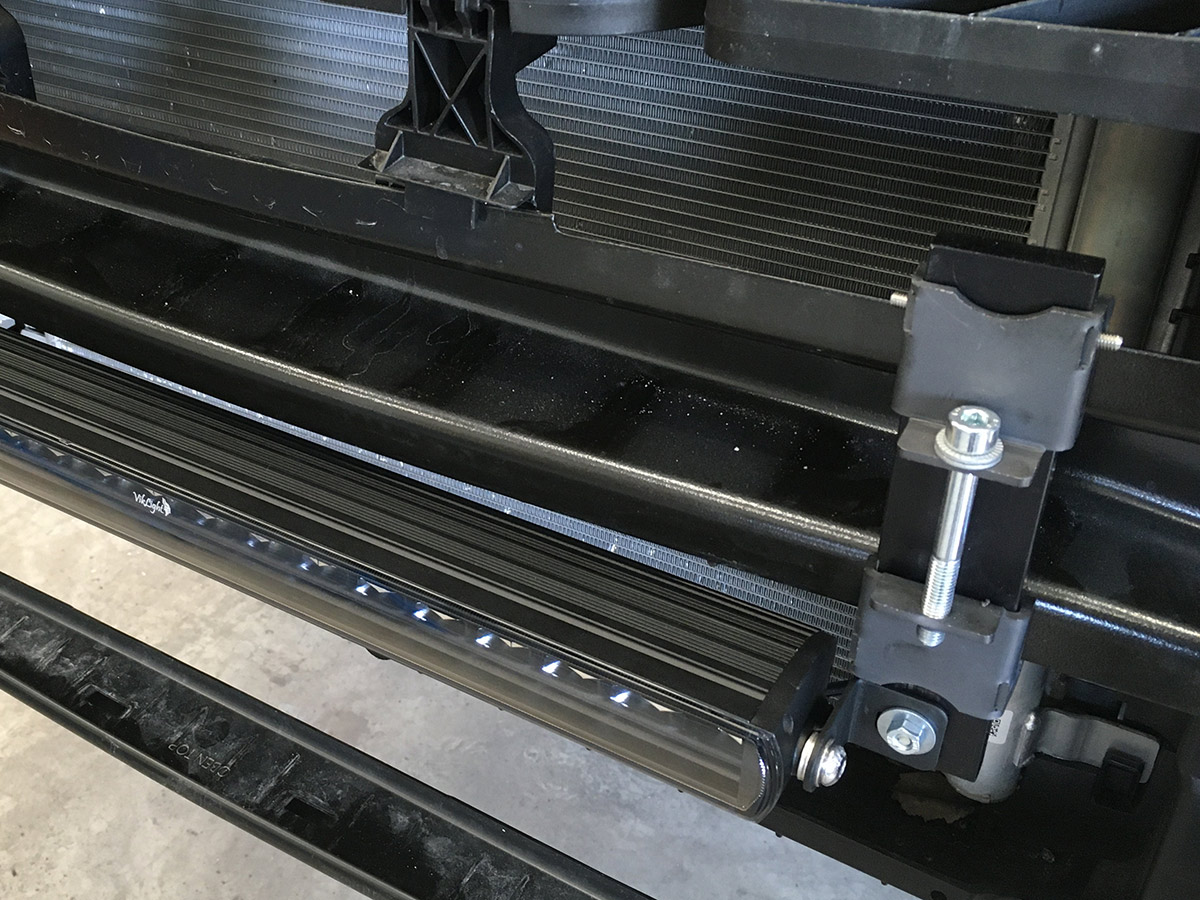

Q-GRIP bumper beam mount - a bracket for e.g. recessed mount of an LED light bar.
- Secure payment by card
- Call us if you have any questions on: +46651-760460
- Fast delivery with DHL
Description
Article no.: QG10010

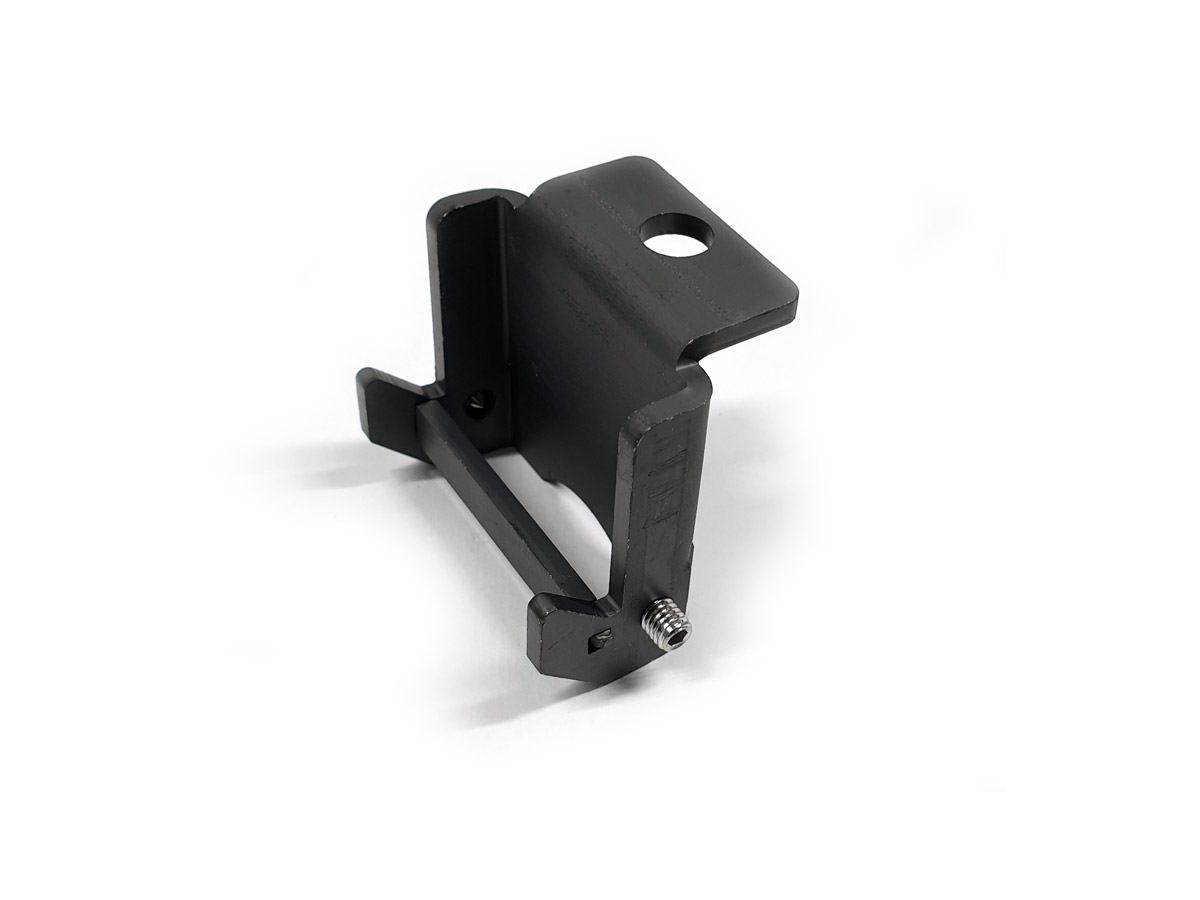

Q-GRIP Claw
Detail to the Q-GRIP systemet.The Claw makes the grip to the bumper beam, desired size of grip is choosen at order.

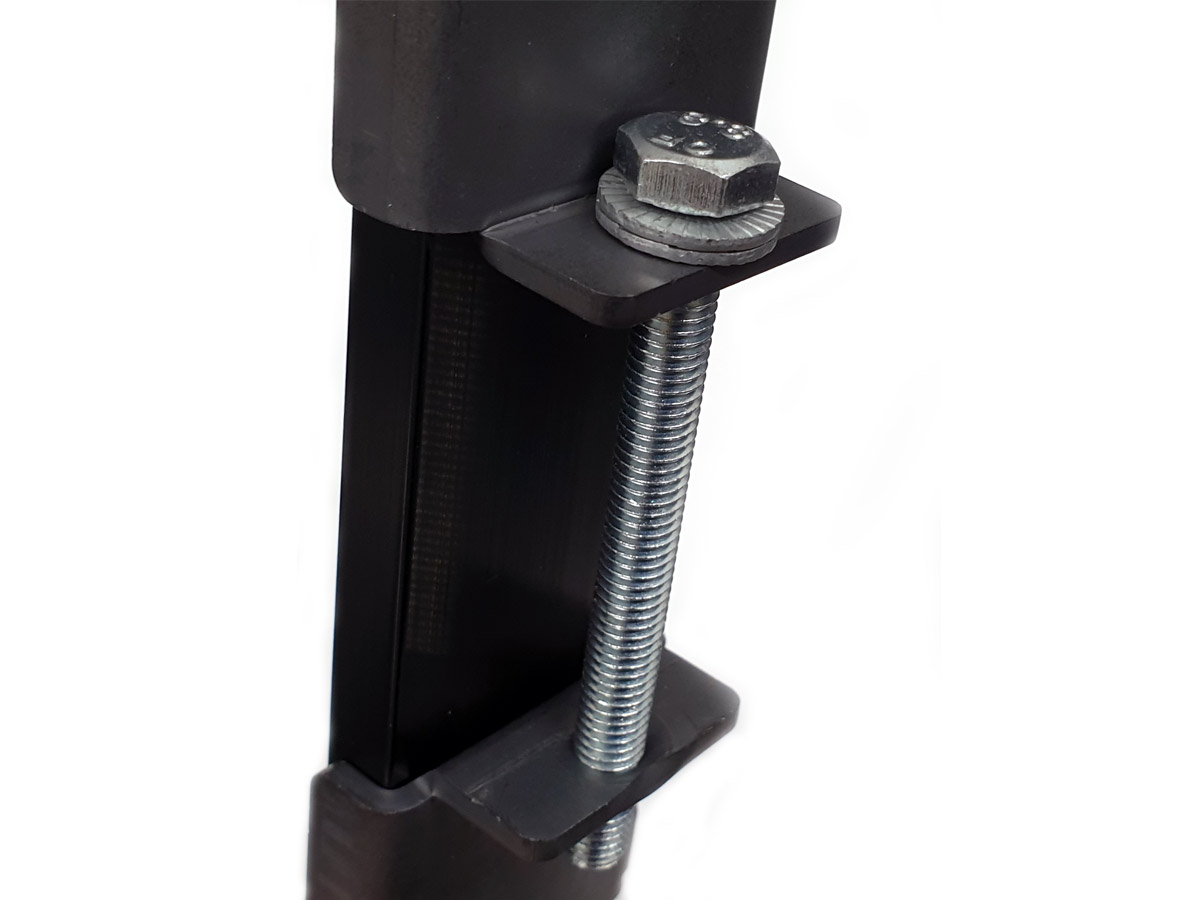

One Claw with thread (M8) and one without are needed to clamp around the bumber beam. Together with a Slide pol.
Read more about the Q-GRIP system in the mounting instruction (PDF).
Specification

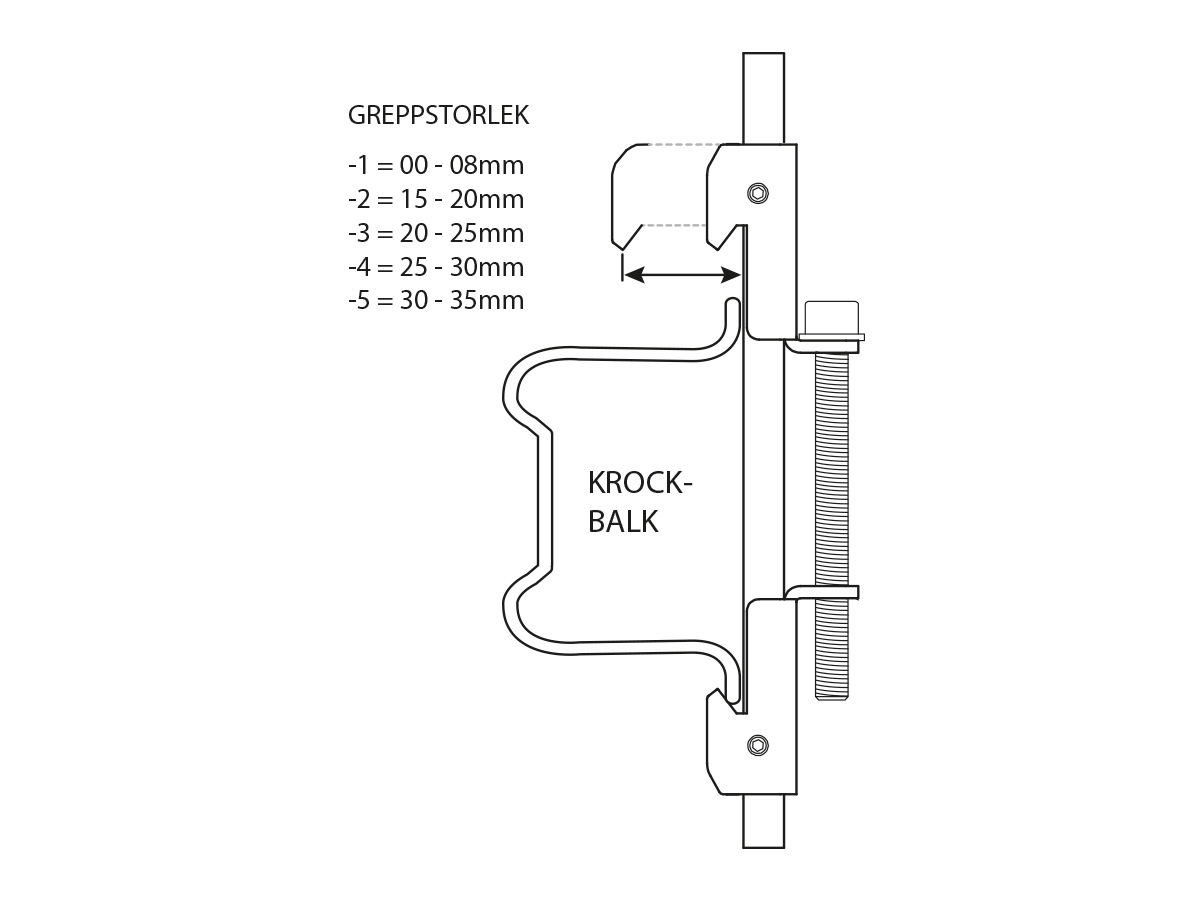

- Grip size: 0-8mm, 15-20mm, 20-25mm, 25-30mm, 30-35mm, 35-40mm, 40-45mm, 45-50mm, 50-55mm
- Material: Steel
- Surface treatment: Corridur
- Includes: M5x8 screws
- Sold separately and every size are availible in 2 variants.
One with thread (M8) och one without. Normally the system needs one of each to clamp around the beam.
Mounting instruction in the PDF below
Files and media
 | Attached file |
